Current measurement made easy
— Retrofittable by customer
— Pre-assembled wiring harness for wiring to connector
— Contacting positively driven when plugging SASILplus
— Assembly options 1?pole, 3?pole, 4?pin (2 x in L1)
— Calibrated and certified for class 0.5 and 0.2
— Moving-iron instruments for instantaneous measuring
— Bimetalic instrument for average measurement
— Plug-in instruments
— Scales for vertical and horizontal mounting

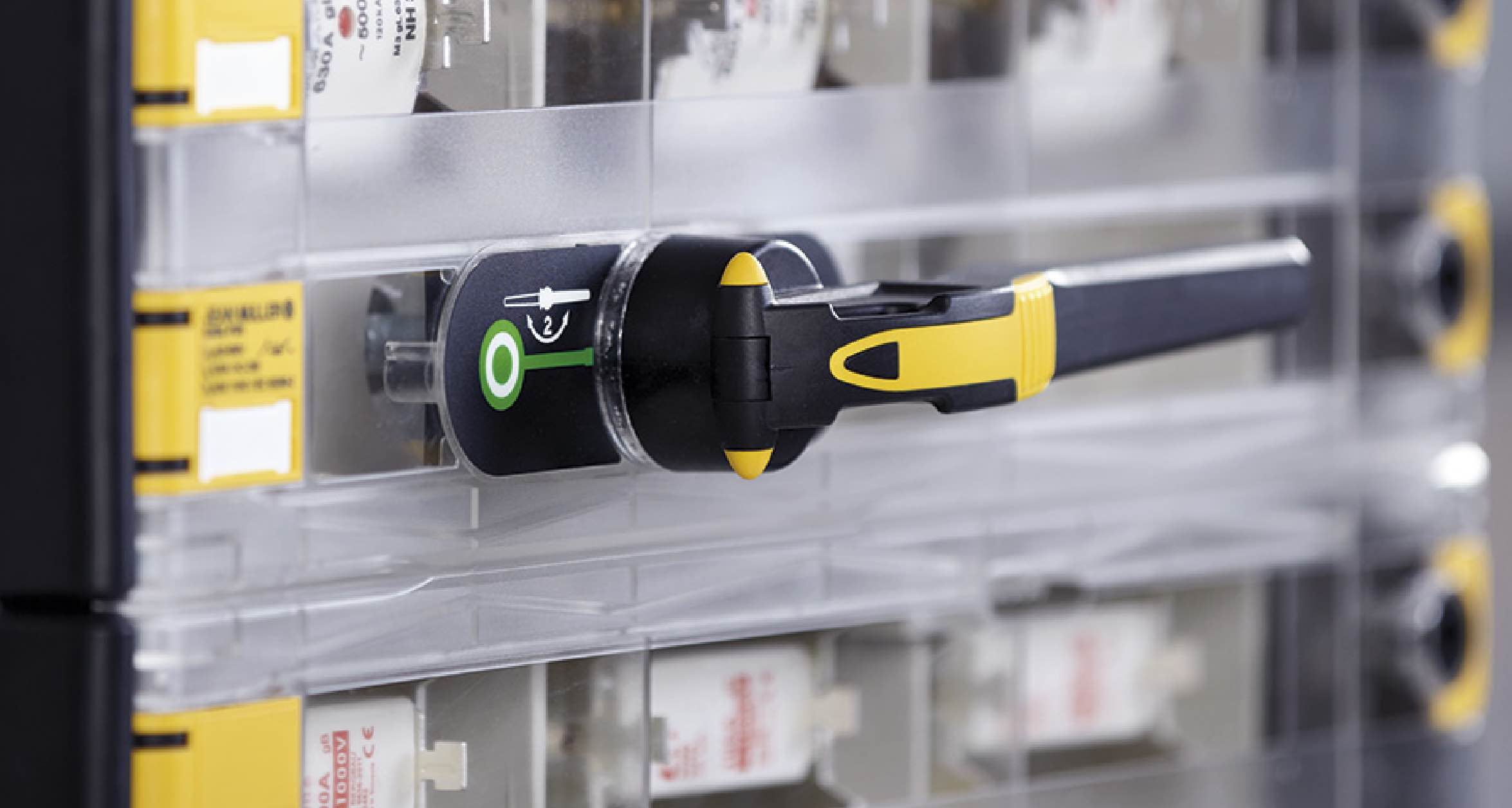

Performance and reliability by using a revolutionary new contact system
— User-independent snap-action mechanism
— High short-circuit strength up to 120kA
— High switching capacity up to AC23B
— Quadruple interruption
— Reliable isolation for fuse-replacement with quadruple interruption
— Low wear by pre contact system

Safe disconnection of busbar systems with SASILplus busbar coupler
— NH3/630A — Module height 150mm
— Connection / disconnection of two 2- or 3?pole busbar systems 185mm
— Isolation of entire units or sections
— Safe separation of system by using busbar separation
— Optional: Total current measurement of all downstream outgoing units

Special design 1000V – The solution for special applications
— Enables low power-loss power transmission over long distances
— Utilization category AC22B / 160A
— Easy design and construction due to standard equipment dimensions

SASILplus DC – the safe switching device for UPS Systems
— Usage in DC systems up to 440V DC
— Busbar system 2 x 185mm = 370mm
— Utilization category DC-22B/220V, DC-21B/440V
— Rated conditional short circuit current 35kA
— Current measurement with shunt

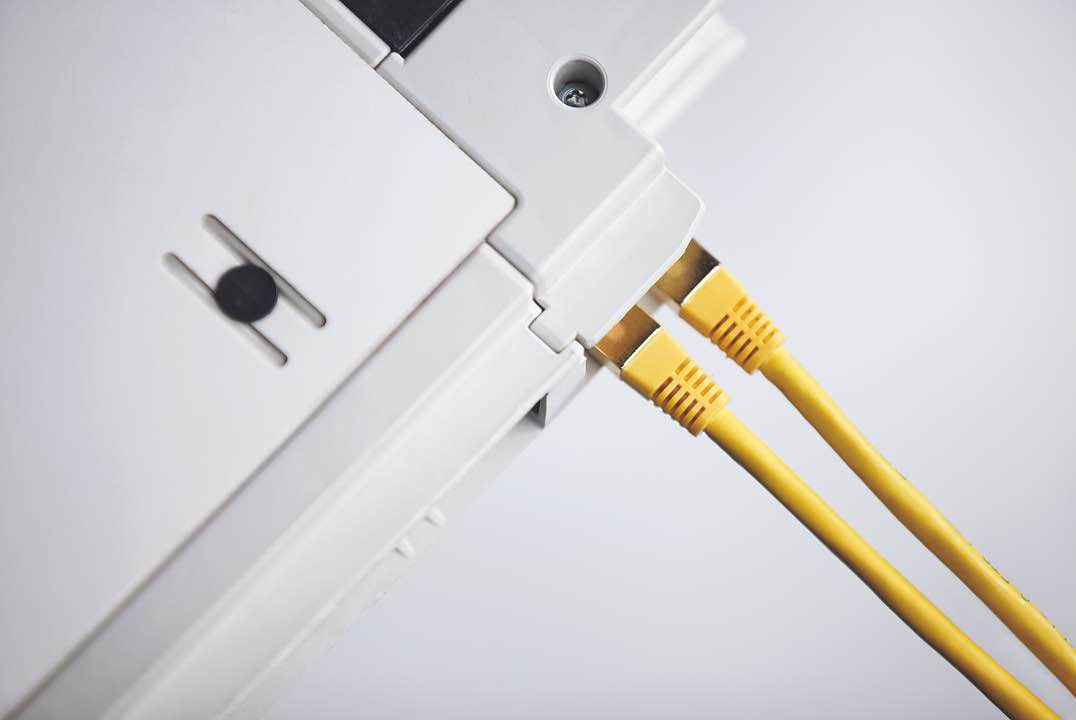

Remote control with SASILplus MOT
— Acquisition and change of switching state via remote data transmission from the control station
— Automated or semi-automated network control
— LEDs for fuse-monitoring, switch-position, status display
— Local control possible
— Technical parameters similar to standard devices
— Combination with manually operated SASILplus disconnectors possible
— Operating buttons can be locked with up to 3 padlocks
— Operating-mode selector switch
— Remote control
— Local control
— Locked
— Manual operation in case power fail of the control voltage by means of emergency function

Benefits of the double plugable SASILplus
— Highest availability
— Fully pluggable (in- and outgoing) main- and control circuit at the smallest room
— Removable part according DIN EN 61439–1:2012–06
— Same dimensions as SASILplus Standard
— No cable disconnecting necessary
— IP2x protection from all sides
— Compatible with SASILplus Standard accessories (excluding EE07)
— Combination with SASILplus Standard possible
— Same technical data as SASILplus Standard
